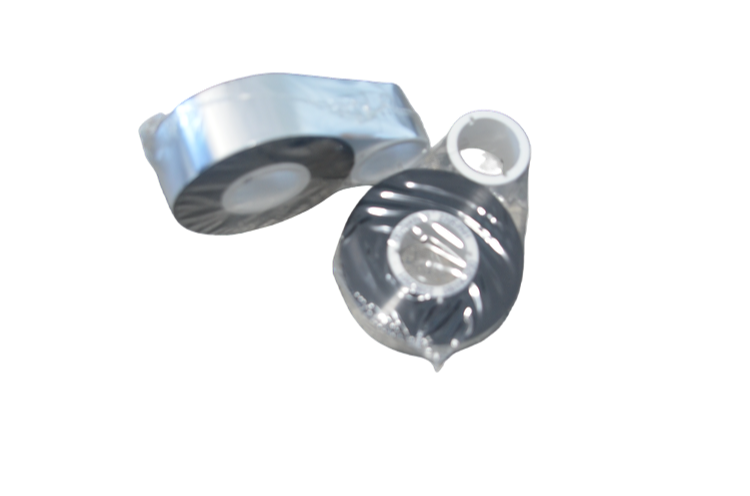

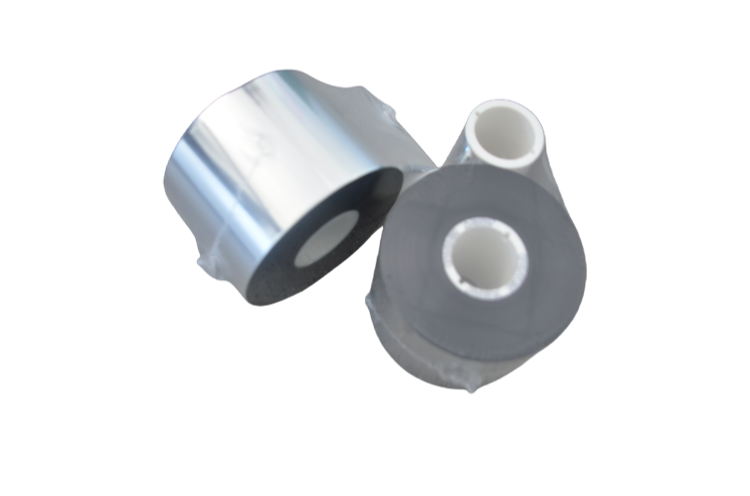

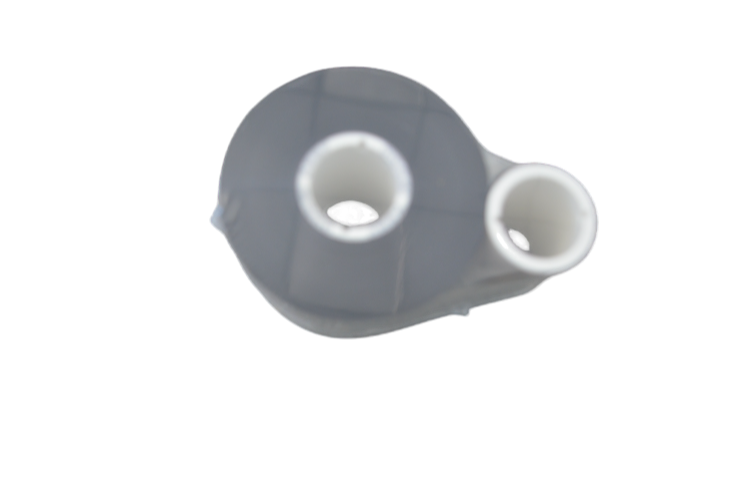

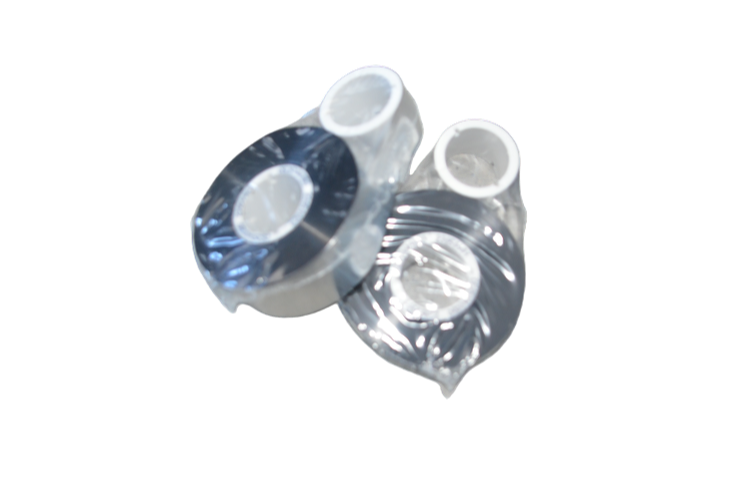

thermal transfer ribbon

Thermal transfer ribbon is a roll of ink-coated film designed specifically for printing onto flexible packaging materials, labels, and films. It works with thermal transfer printers and overprinters, using heat and pressure to transfer ink from the ribbon onto the substrate surface, producing clear, durable prints of variable data such as dates, barcodes, and QR codes.

In one sentence: The “ink cartridge” for thermal transfer printers – delivering clear, durable, and scan‑friendly codes on packaging.

Key Advantages:

  • ✅ Crisp, high‑quality prints – sharp text and scannable barcodes/QR codes

  • ✅ Durable and long‑lasting – scratch‑resistant and fade‑resistant results

  • ✅ Available in three types – Wax, Wax/Resin, and Resin to match your material and budget

  • ✅ Wide compatibility – works on plastic films, coated paper, labels, and more

  • ✅ High‑speed capability – supports printing up to 300–400mm/s (depending on equipment)

  • ✅ Multiple widths & lengths – 25mm/33mm/55mm/110mm, up to 600m length

  • ✅ Multiple colors – black (standard), white, red, blue, gold, silver, and more

Three Types – How to Choose:

Type Best For Cost
Wax Ribbon Plain paper labels, carton labeling Lowest
Wax/Resin Ribbon Plastic packaging, synthetic labels – the balanced choice Medium
Resin Ribbon Extreme conditions (high/low temp, chemicals) – maximum durability Highest

Common Specifications:

Parameter Range
Width 25mm / 33mm / 55mm / 110mm (custom available)
Length 600m (standard)
Colors Black, white, red, blue, gold, silver
Core Inner Diameter 1 inch (25mm)

Perfect Match:
Our thermal transfer ribbons are designed as the matched consumable for TTO (Thermal Transfer Overprinters), ensuring seamless compatibility – no jams, no misalignment, and consistently clear prints. Combined with vacuum bag‑flattening technology, every print is perfectly positioned and uniform.


In one sentence: Thermal transfer ribbon = the dedicated “ink” for coding your flexible packaging. One roll gives you date codes, batch numbers, barcodes, and QR codes – clear, durable, and built to last.

Product Details

I. Product Positioning

The thermal transfer ribbon is a consumable designed specifically for flexible packaging coding and label printing. Serving as the dedicated “ink” for TTO thermal transfer overprinters, it transfers the coating from the ribbon onto packaging material surfaces through heat and pressure, producing clear and durable text, dates, barcodes, and QR codes.


II. Basic Technical Specifications

Parameter Specification
Base Material / Carrier PET polyester film
Coating Structure Back coating (protective layer) + ink coating
Standard Length 600 m
Core Inner Diameter 1 inch (25 mm) – industry standard
Standard Widths 25 mm / 33 mm / 55 mm / 110 mm (other widths available upon request)
Standard Color Black (white, red, blue, gold, silver, etc. available upon request)

III. Ribbon Types and Performance Specifications

Parameter Wax Ribbon Wax/Resin Ribbon Resin Ribbon
Wax Content Approx. 70% Approx. 50% Low
Resin Content Low Approx. 50% High
Operating Temperature 90 – 120℃ 100 – 140℃ 120 – 180℃
Print Speed Support ≤ 300 mm/s ≤ 300 mm/s ≤ 300 mm/s
Scratch Resistance Moderate Good Excellent
Temperature Resistance Moderate Good Excellent (retort/freezer resistant)
Cost Lowest Moderate Highest

IV. Compatible Materials and Application Scenarios

Ribbon Type Compatible Materials Typical Applications
Wax Ribbon Coated paper, glossy paper, rough paper General labels, carton labeling
Wax/Resin Ribbon Coated paper, synthetic paper, PET, PVC Plastic packaging bags, synthetic labels
Resin Ribbon Polyester film, aluminum foil, nylon, specialty plastics Retort packaging, frozen packaging, chemical-resistant applications

V. Print Quality and Performance Specifications

Parameter Description
Print Clarity Sharp text edges; high scan reliability for barcodes and QR codes
Adhesion Ink is “embedded” into material surface through heat and pressure – resists peeling
Durability Scratch-resistant and fade-resistant; suitable for logistics and warehousing environments
Compatibility Matched with TTO thermal transfer overprinter systems – no jams or misalignment

VI. Selection Guide (Quick Reference)

Application Scenario Recommended Ribbon Type
Standard paper labels, carton labeling Wax Ribbon (best cost-performance)
Plastic packaging bags, synthetic labels Wax/Resin Ribbon (balanced choice)
Retort sterilization, frozen environments, chemical-resistant applications Resin Ribbon (maximum performance)

VII. Storage and Usage Specifications

Parameter Recommended Conditions
Storage Temperature 5℃ – 35℃
Storage Humidity 40% – 70% RH
Avoid Direct sunlight, high temperature/humidity, dusty environments
Shelf Life Minimum 12 months when stored under recommended conditions
